Rotameter
Rotameter LZS
The LZS Series is a plastic tube variable area flowmeter designed for direct inline installation. Constructed with a shatter-resistant AS/ABS body and fittings. Ideal for general water treatment applications and light chemical flow monitoring.
Body Material: AS/ABS Plastic
Connection Type: Glue Socket/Female Thredad/Flange
Available Versions: Short Tube & Long Tube models
Size Range: DN15 (1/2″) up to DN150 (6″)
Application: Liquid
Rotameter LZM-G
The LZM-G Series features a clear acrylic body for instant visual flow verification. Designed for inline installation, this series is equipped with standard female screw thread (BSP) connections, allowing for easy integration into existing metal or plastic piping systems without requiring adaptors.
Body Material: Clear Acrylic
Fitting Material: ABS Plastic or Stainless Steel options
Connection Type: Female Screw Thread (BSP)
Size Range: 1/4″ up to 2″
Application: Liquid and Gas

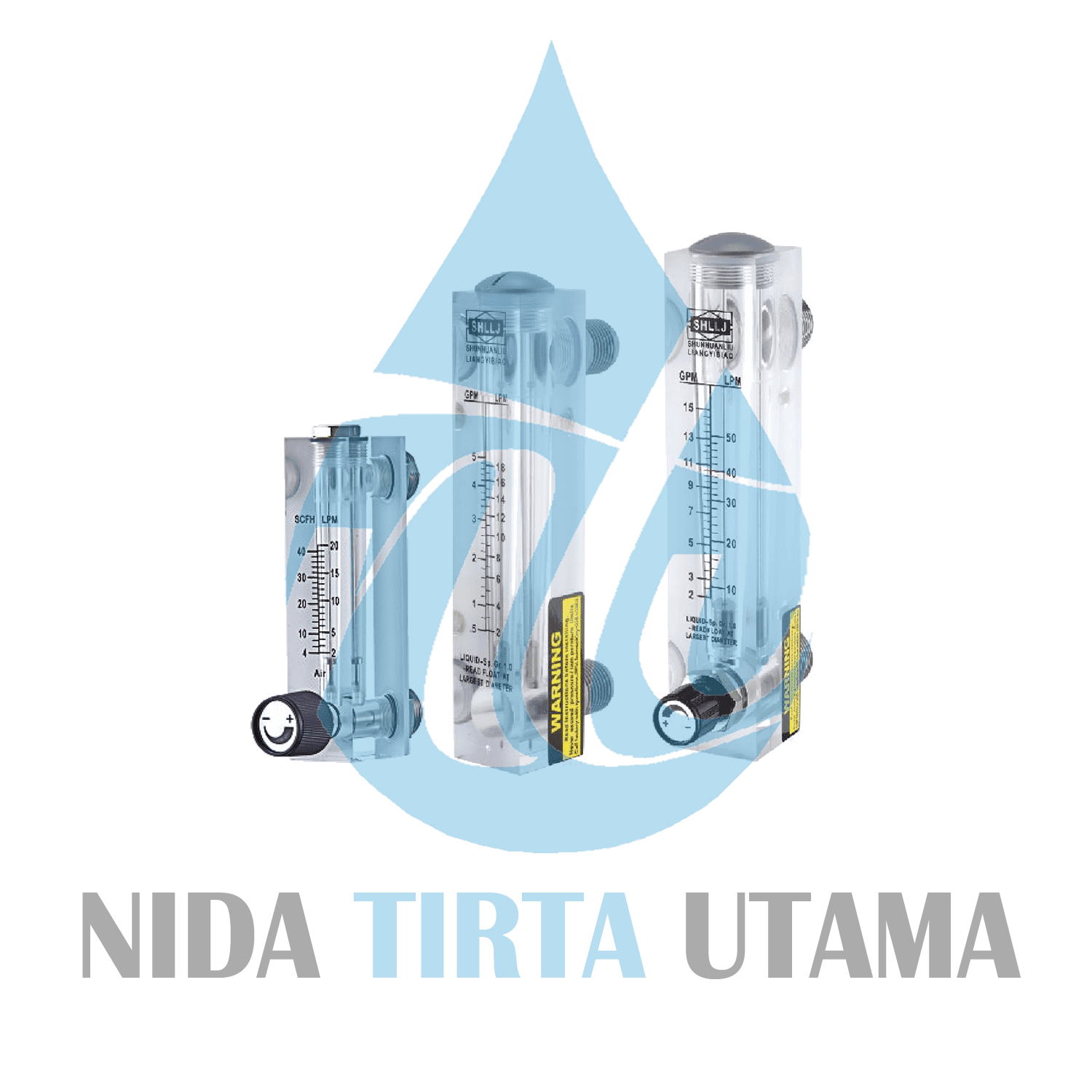

Rotameter LZM-T
Designed for system integration, the LZM-T Series is a panel-mount acrylic flowmeter. It features a built-in adjustable control valve, allowing precise regulation of flow directly at the panel. The back-mount configuration with thread or nozzle fittings makes it ideal for instrument panels in water purification or gas analysis equipment.
Mounting Type: Panel Mount (Back connection)
Feature: Integrated Adjustable Flow Control Valve
Body Material: Acrylic block
Connection Type: Male Thread or Hose Nozzle
Application: Liquid and Gas

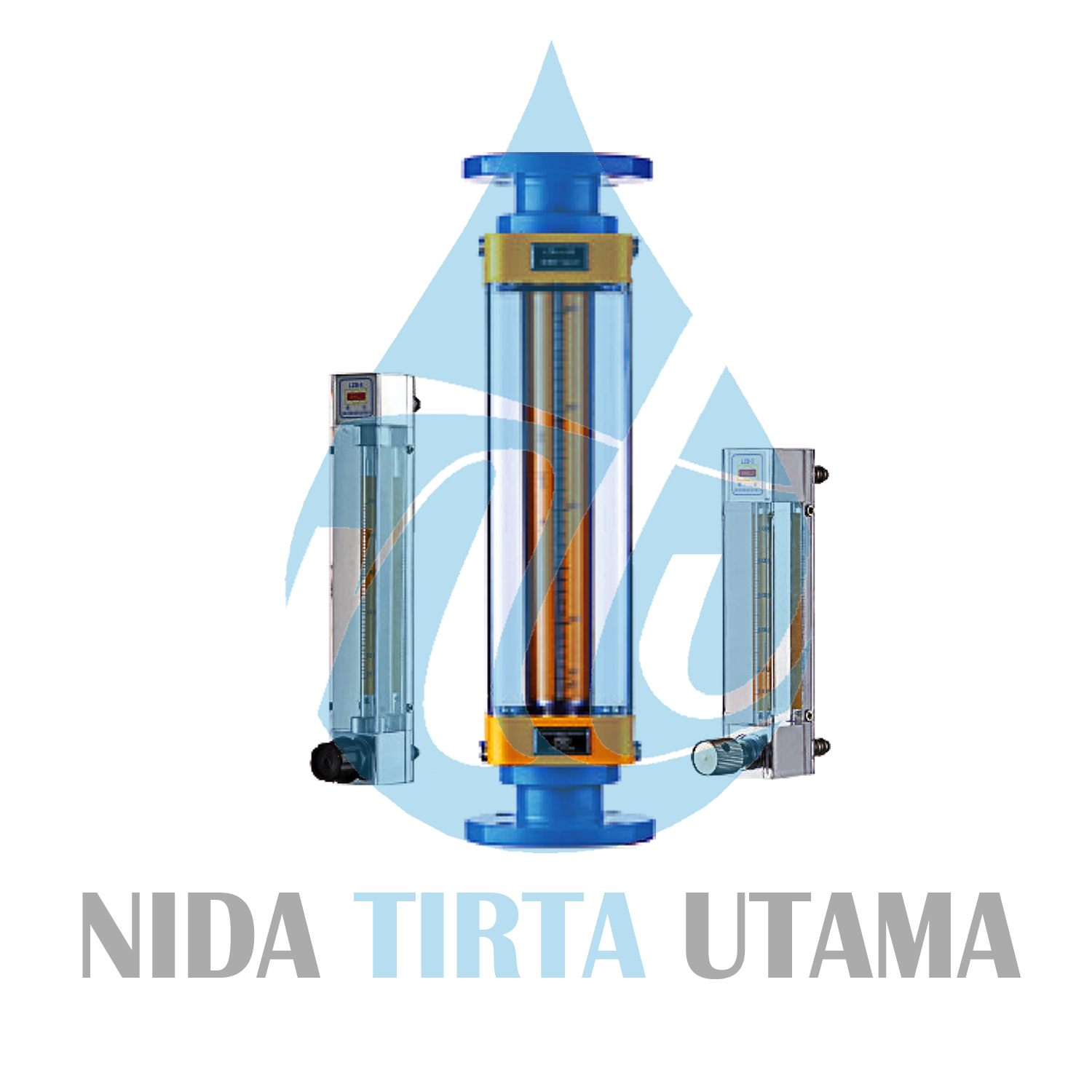

Rotameter Glass LZB
The LZB Series utilizes a high-visibility glass measuring tube, offering superior chemical resistance against acids and alkalis compared to plastic models. This versatile series provides stable flow indication for both liquid and gas applications, available in various connection styles ranging from hose nozzles to standard flanges for larger pipes.
Tube Material: Borosilicate Glass (High chemical resistance)
Connection Options: Hose/Thread (for sizes ≤ DN10), Flange (for sizes ≥ DN15)
Size Range: DN3 (small bore) up to DN100 (4″)
Application: Liquid and Gas

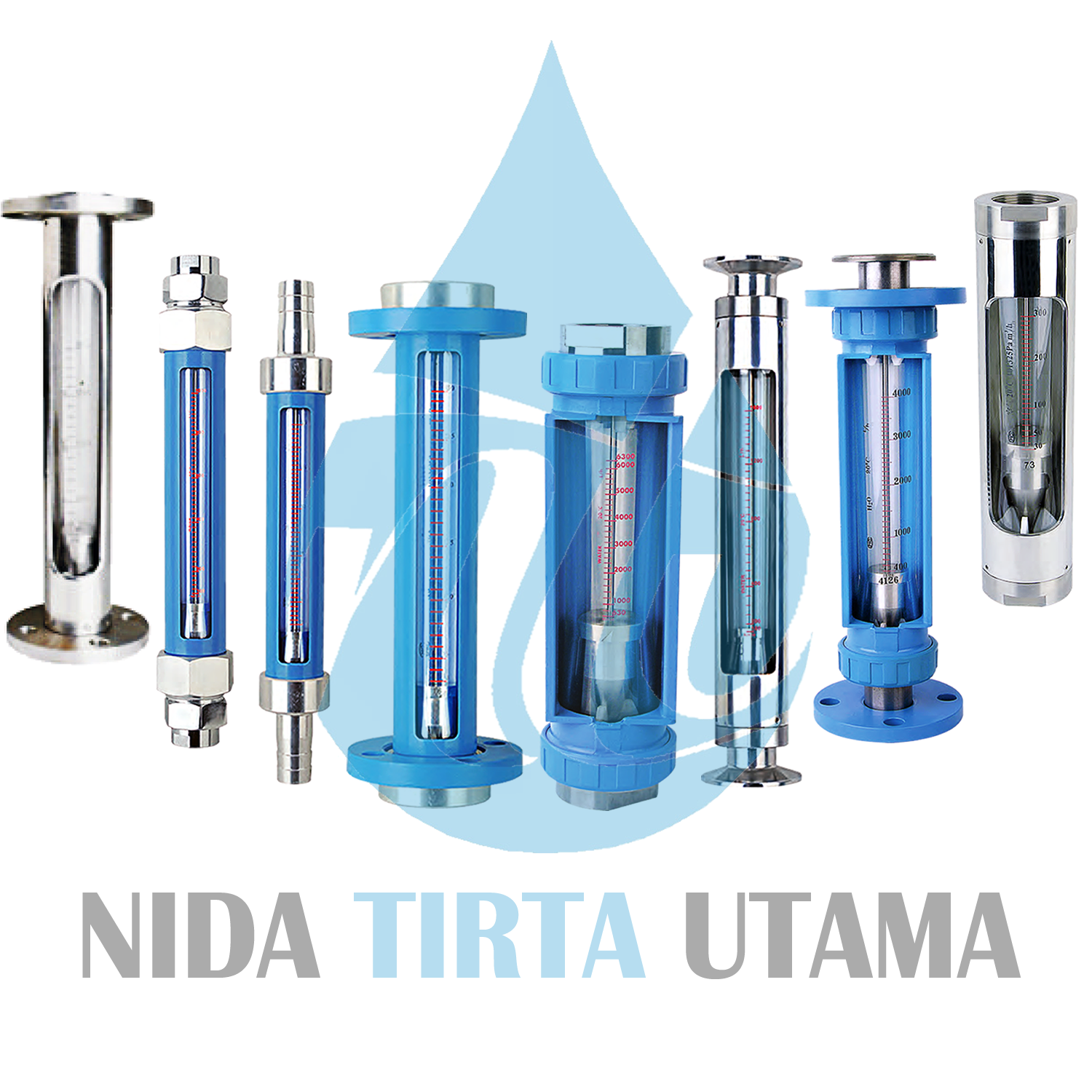

Rotameter Glass VA/SA/FA
These series combine the precision of a glass metering tube with the ruggedness of a protective metal housing. The glass tube is encased in a strong aluminum frame structure, ensuring durability and protection in industrial environments while maintaining clear readability. Available with screw thread or hose nozzle connections.
Tube Material: Glass
Housing Material: SS304 connection for impact protection
Connection Type: Female Thread or Hose Nozzle
Size Range: 15mm (1/2″) to 50mm (2″)
Application: Liquid and Gas

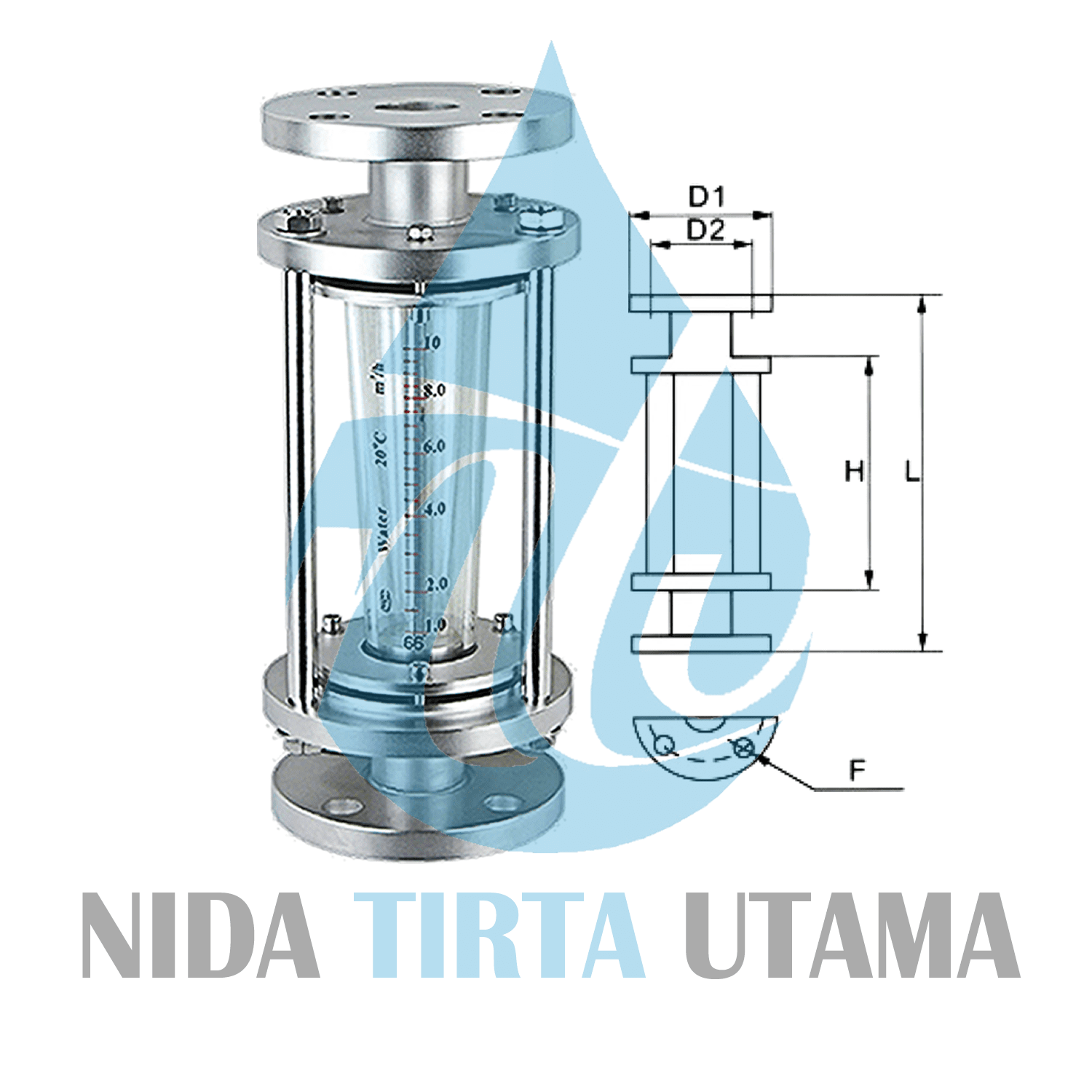

Rotameter Glass FA100
The FA100 Series is a heavy-duty glass tube rotameter designed for secure, leak-proof integration into standard industrial piping systems via flange connections. It provides reliable, direct-reading flow indication for larger pipe sizes, suitable for various process industries requiring stable liquid measurement.
Tube Material: Glass
Connection Type: Standard Industrial Flange
Size Range: DN15 (1/2″) up to DN100 (4″)
Application: Liquid and Gas
